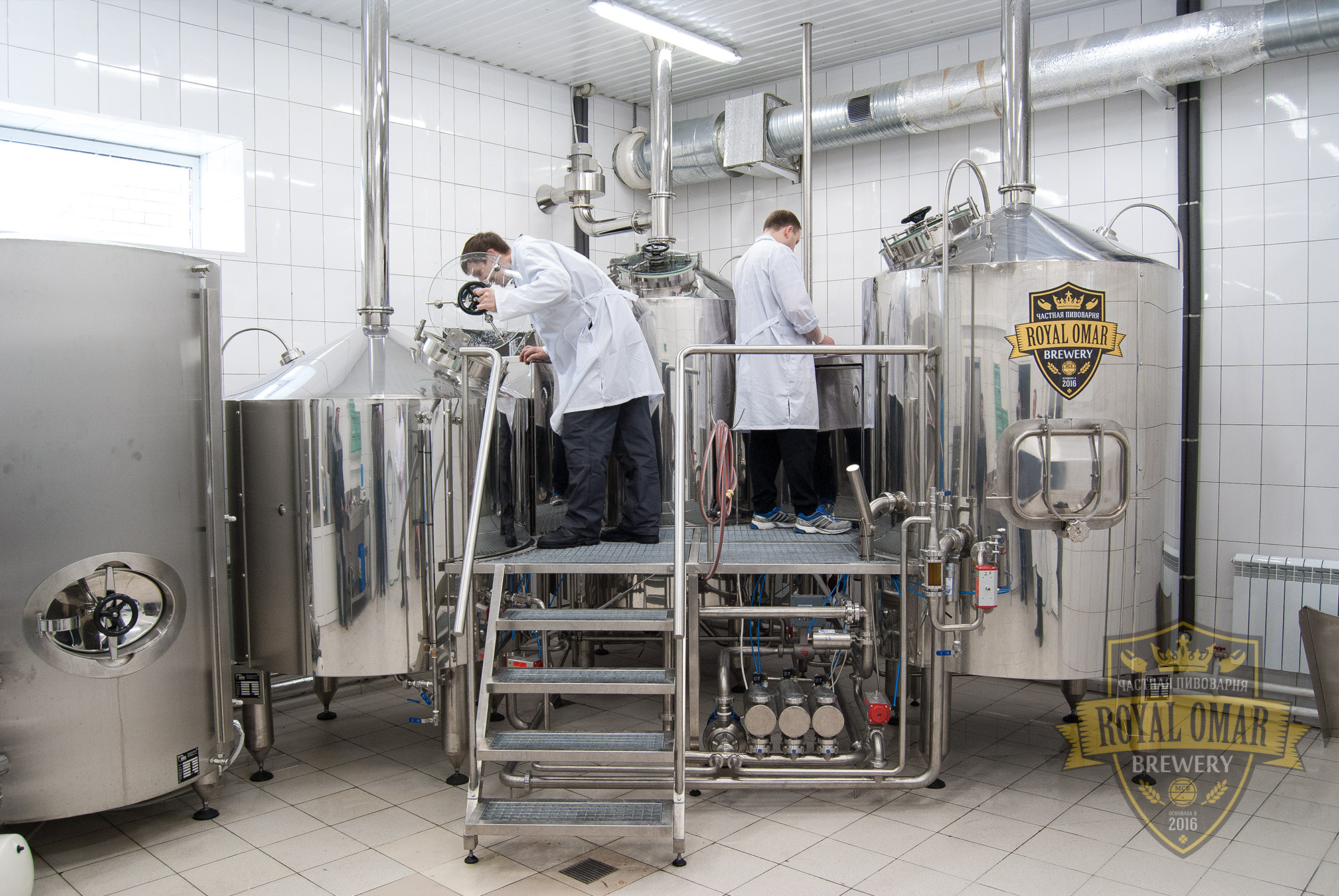

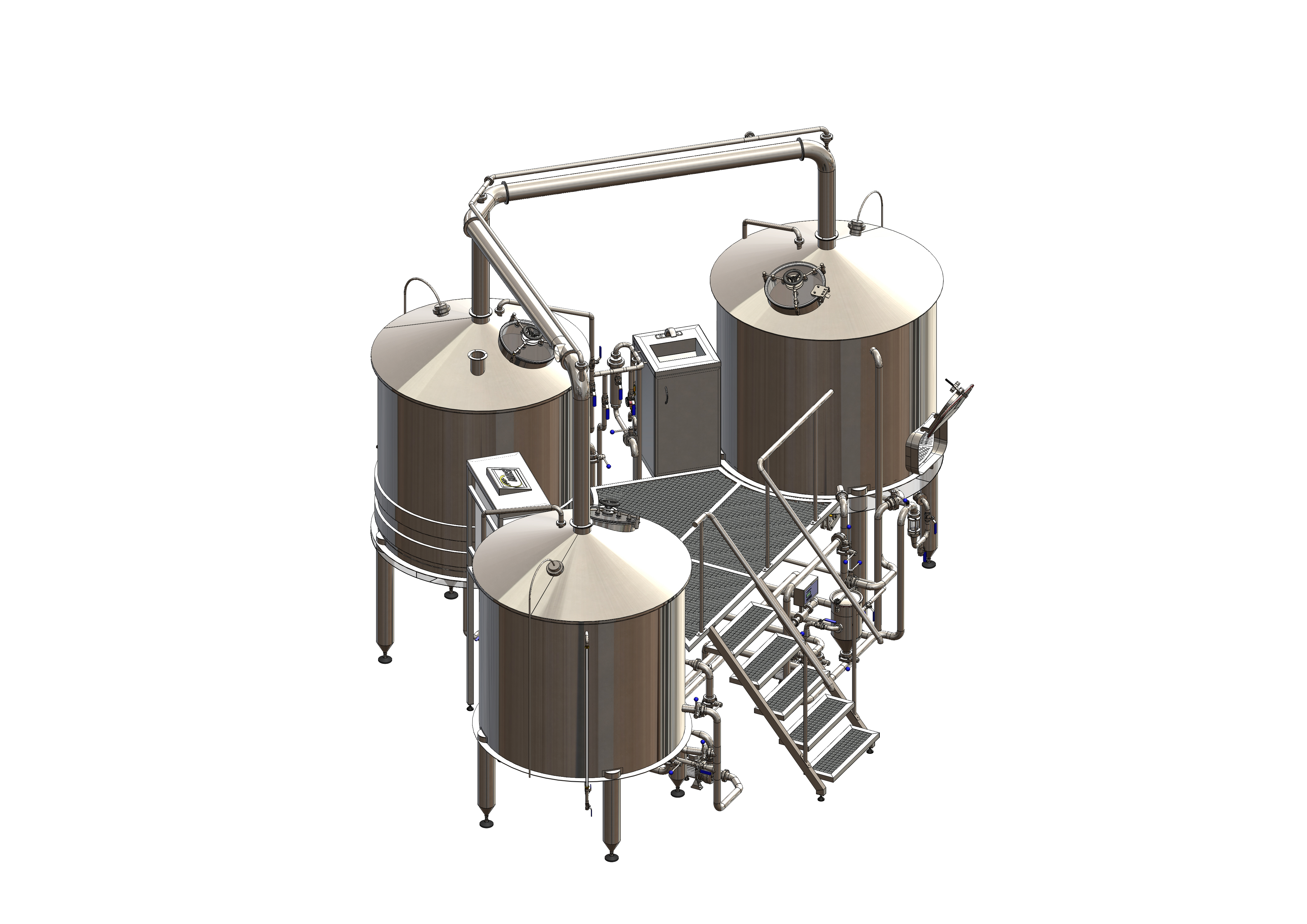

The three vessels brewing set in shiny stainless steel is used for the production of beer wort in both, the infusion as well as the decoction way of cooking. The brewing set kit consists of three separate containers: a mash kettle, a filter tank and a swirl tank. The brewing set is mounted on a podium with stairs and control panel with a touch screen and a sink with a lever faucet.

The production of V20PN per batch is 2 000 liters of finished beer. This brewing set can be made in semiautomatic or fully automatic operating mode. In the semiautomatic mode, all of the valves are manual, except the valves of filling with water and steam. These are pneumatic and controlled from the touch screen. In the fully automatic mode, all of the valves are pneumatic and controlled from the touch screen.  There are several recipes in the PLC, according to which the brewing set will automatically lead the whole process of cooking the beer wort.

For an additional fee, it is possible to equip the brewing set with height adjustable stirrer in the filter tank and increasing of the filter tank volume.

Controlling:
1) Semiautomatic
2) Fully automatic
Stirerr lifting:
1) None
2) Electrical
Parameters: Mash kettle:
Capacity:2 649 l
Diameter:1 500 mm
Steam bottom, steam jacketing – 2x pneumatic steam valve Norgren
Lighting, sanitation shower, steam condensate separator, two armed agitator with a gearbox, a motor and a frequency converter
Insulation consists of 50mm of plasticized cotton
Parameters: Filter tank
Capacity:2 208 l
Diameter:1 500 mm
Stirrer with a gearbox, a motor and a frequency converter:2 arms 8 blades
Filtration bottom is divided in 6 segments for a better demountability Lighting, sanitation shower
Filter valve with sight glass, brewer's grains discharge equipment
Insulation consists of 50mm of plasticized cotton
Parameters: Swirl tank
Capacity:2 208 l
Diameter:1 500 mm
Sanitation shower, tangential nozzle, level indicator, fermenting valve
Insulation consists of 50mm of plasticized cotton

The brewing set includes all the necessary piping and electric installation including the integrated fully equipped and fully stainless steel switchboard, which fits into the whole design of the brewing set. All the three vessels are provided with a unique upper sanitation manhole in a all-glass design.

It is also possible to equip the brewing set with a vapor condenser with a heat exchanger or with a manhole of the transporter of the grinded malt. The brewing set is mounted on a podium with stairs, a sink with battery and cooling for the samples. Because of the transportation, the boiling equipment kit is demountable.
