Boiling equipment V15PN

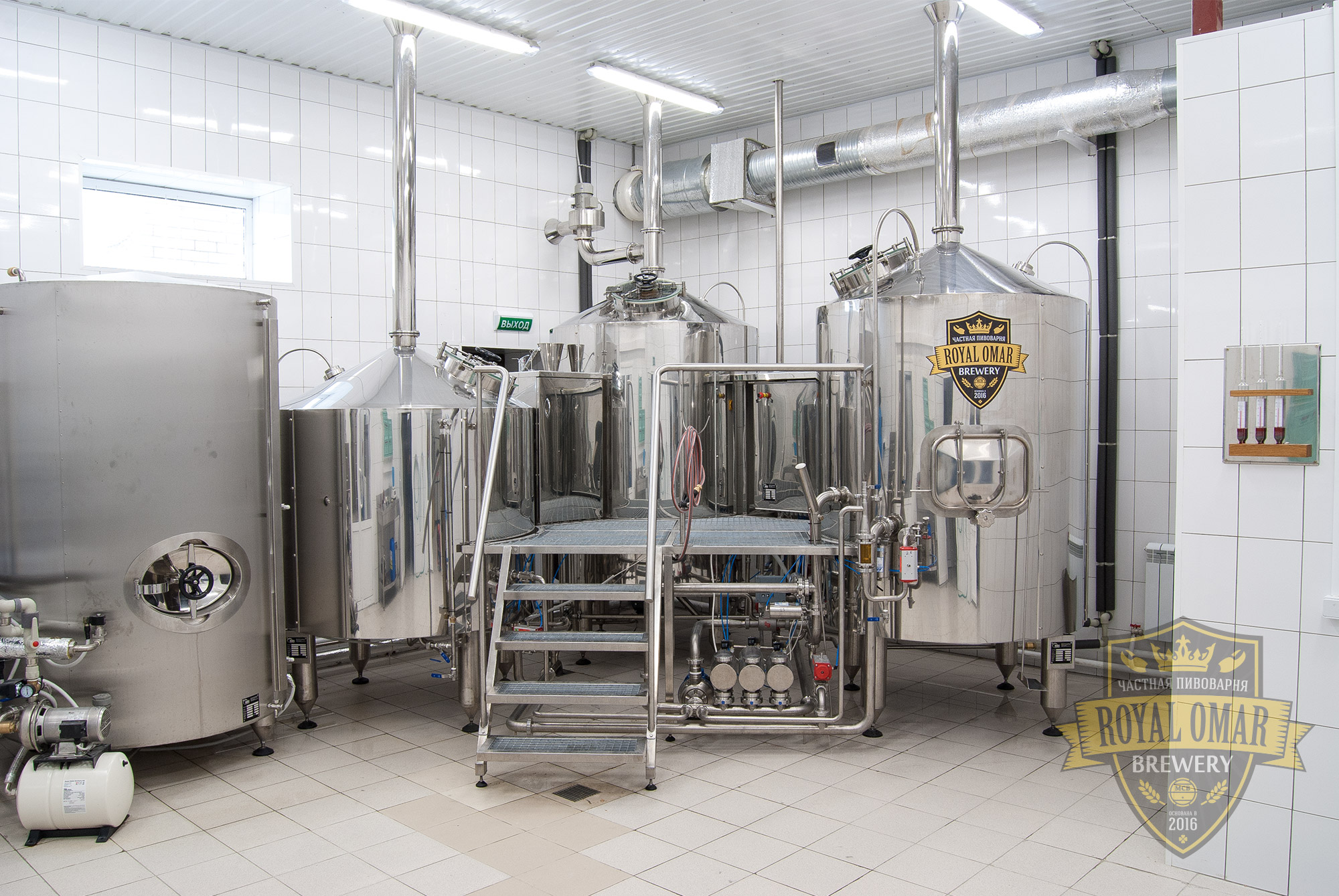

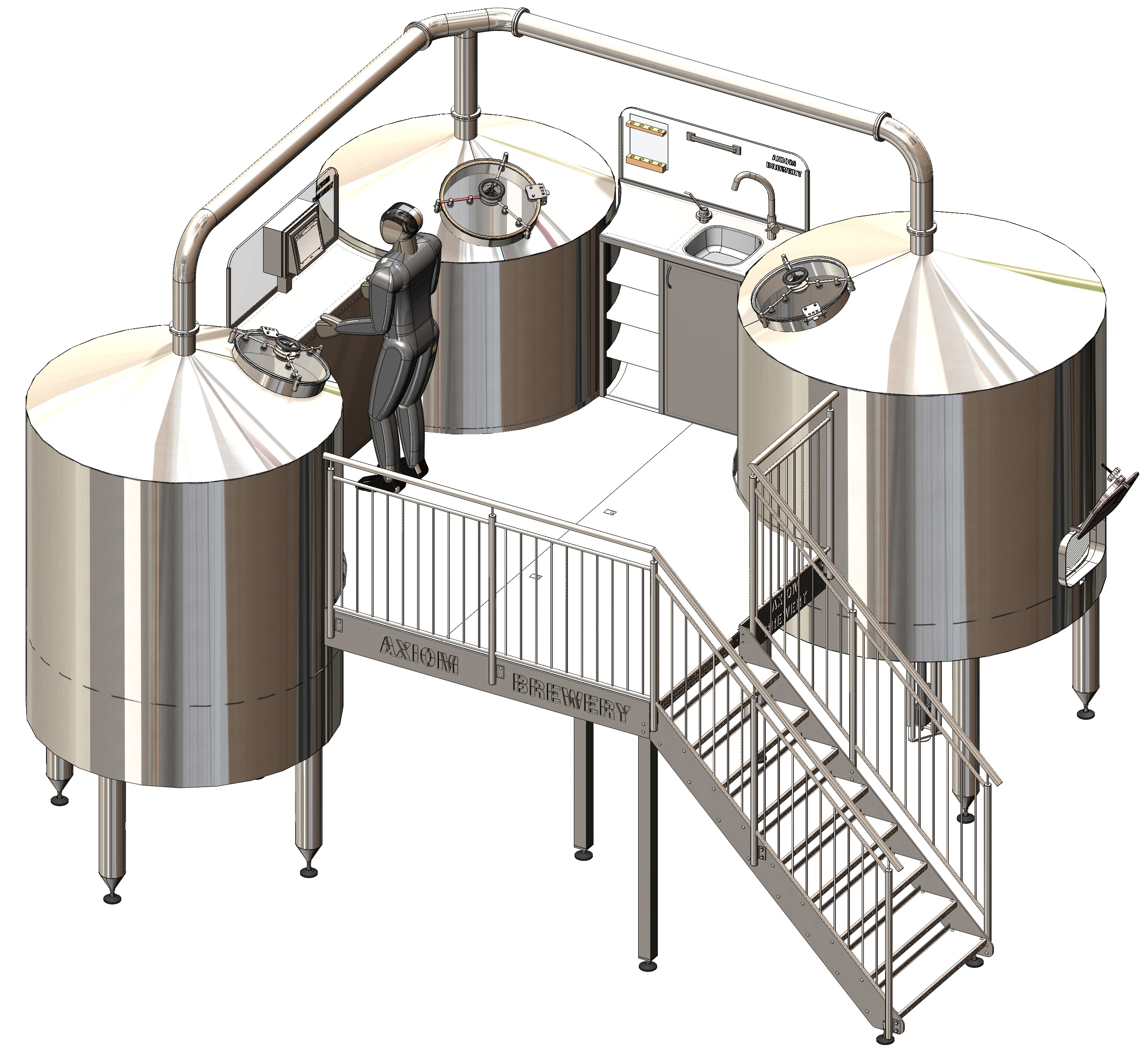

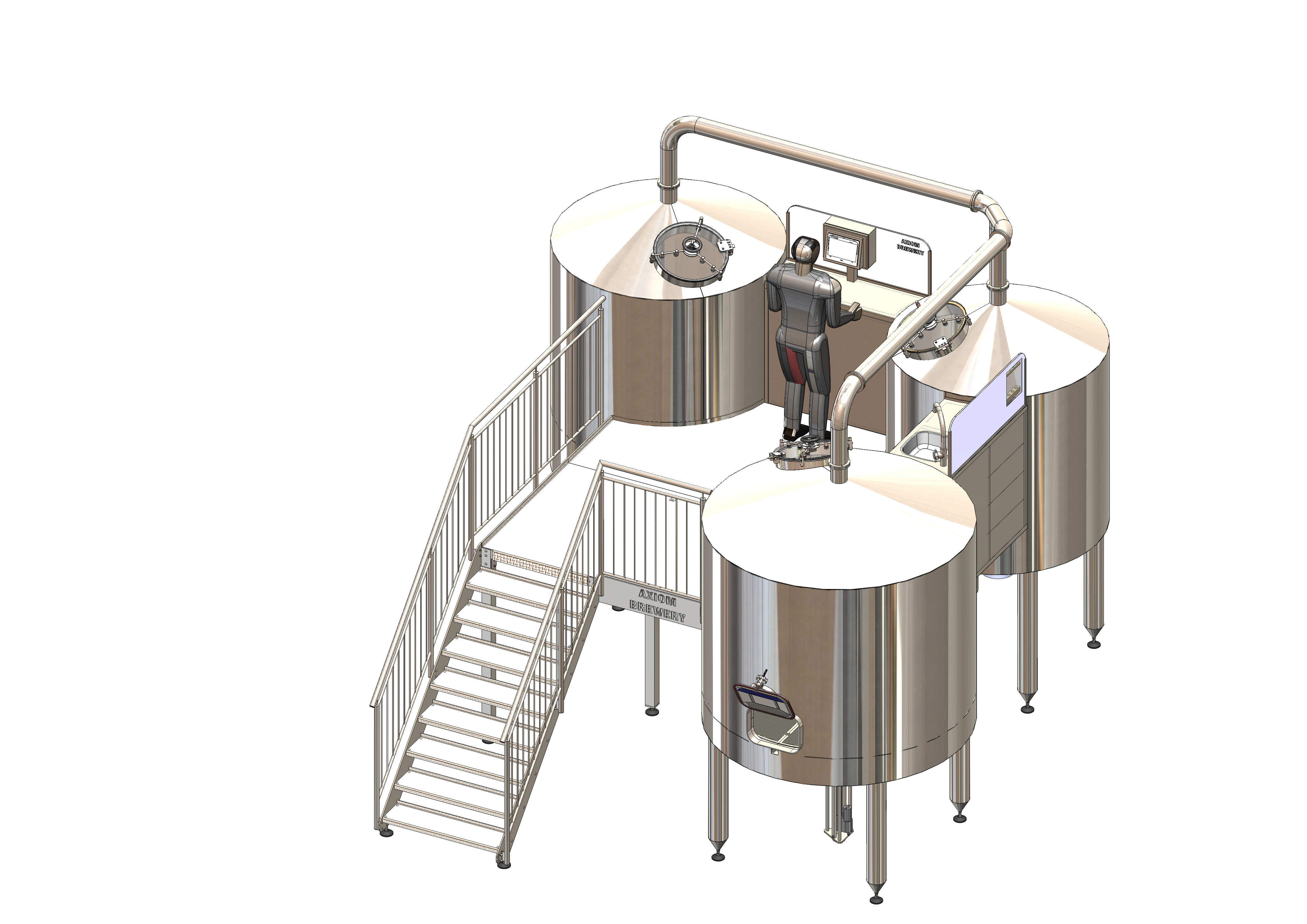

The three vessels boiling equipment in shiny stainless steel is used for the production of beer wort in both, the infusion as well as the decoction way of cooking. The boiling equipment kit consists of three separate containers: a mash kettle, a filter tank and a swirl tank. The boiling equipment is mounted on a podium with stairs and control panel with a touch screen and a sink with a lever faucet.

The production of V15PN per batch is 1 500 liters of finished beer. This boiling equipment can be made in semiautomatic or fully automatic operating mode. In the semiautomatic mode, all of the valves are manual, except the valves of filling with water and steam. These are pneumatic and controlled from the touch screen. In the fully automatic mode, all of the valves are pneumatic and controlled from the touch screen.  There are several recipes in the PLC, according to which the boiling equipment will automatically lead the whole process of cooking the beer wort.

For an additional fee, it is possible to equip the boiling equipment with height adjustable stirrer in the filter tank and increasing of the filter tank volume.

Controlling:
1) Semiautomatic
2) Fully automatic
Stirerr lifting:
1) None
2) Electrical
Parameters: Mash kettle:
Capacity:2 343 l
Diameter:1 560 mm
Steam bottom, steam jacketing – 2x pneumatic steam valve Norgren
Lighting, sanitation shower, steam condensate separator, two armed agitator with a gearbox, a motor and a frequency converter
Insulation consists of 50mm of plasticized cotton
Parameters: Filter tank
Capacity:1 673 l
Diameter:1 560 mm
Stirrer with a gearbox, a motor and a frequency converter:2 arms 8 blades
Filtration bottom is divided in 6 segments for a better demountability Lighting, sanitation shower
Filter valve with sight glass, brewer's grains discharge equipment
Insulation consists of 50mm of plasticized cotton
Parameters: Swirl tank
Capacity:1 841 l
Diameter:1 560 mm
Sanitation shower, tangential nozzle, level indicator, fermenting valve
Insulation consists of 50mm of plasticized cotton

The boiling equipment includes all the necessary piping and electric installation including the integrated fully equipped and fully stainless steel switchboard, which fits into the whole design of the boiling equipment. All the three vessels are provided with a unique upper sanitation manhole in a all-glass design.

It is also possible to equip the boiling equipment with a vapor condenser with a heat exchanger or with a manhole of the transporter of the grinded malt. The boiling equipment is mounted on a podium with stairs, a sink with battery and cooling for the samples. Because of the transportation, the boiling equipment kit is demountable.
